Description
This used machine has not been used by anyone, guaranteed to be 80% new, but has some minor scratches. If you don’t mind this, this AC DC TIG welder would be a great choice for you, offered at a very affordable price.
Some minor scratches on the screen and traces of foam on the power cord.
For sale: Machines in 100% quality condition. Minor scratches due to transportation. Quality warranty period: 2 years.
Warm suggestion: Before using the AC DC TIG200P, it’s recommended to adjust your machine using test parameters.
Pre-flow time: 0.5s
Starting current: 50A
Rising time: 0s
Welding current: 100A
Fall time: 0s
Ending current: 20A
AC frequency: 100HZ
Cleaning width: 30%
Welding material: 5mm aluminum plate
Tungsten electrode diameter: 2.4mm
Technical Parameters

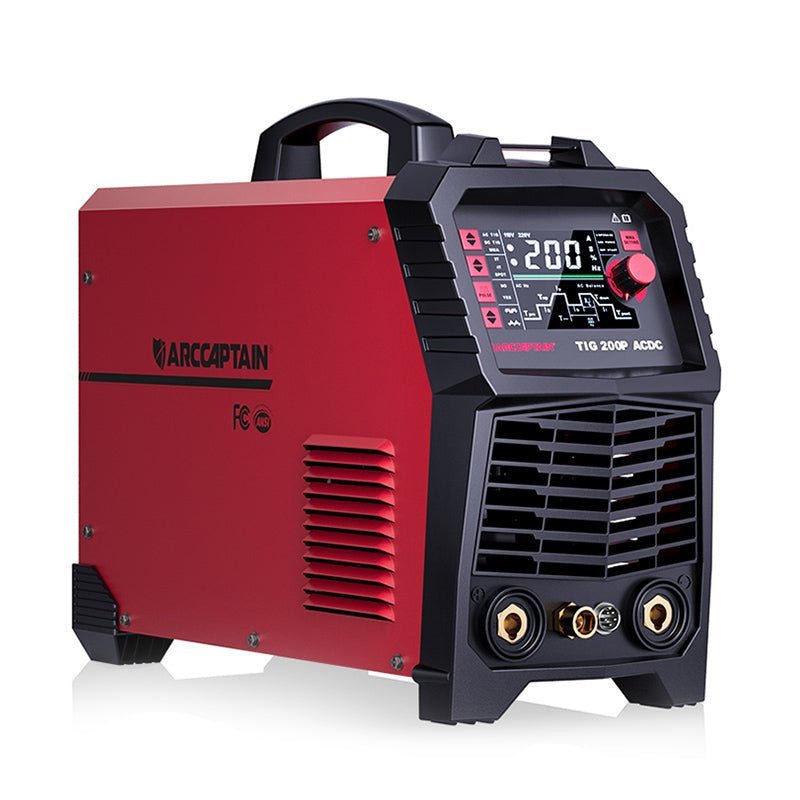

The ARCCAPTAIN TIG200P AC/DC Pulse Tig Aluminum Welder offers excellent welding performance and versatility when working with aluminum. Thanks to its AC/DC capabilities, you’ll have access to adjustable pulse characteristics and a wide range of welding modes. This creates an ideal environment for welding aluminum, making it an ideal choice for those working with this metal.
|
Project Name |
Unit |
Value |
||
|
Power voltage |
VAC |
AC110V±15% AC220V±15% |
||
|
Input frequency |
Hz |
50 |
||
|
Rated input current |
A |
33@TIG 35@MMA |
||
|
Capacity of power supply |
KVA |
6.0@TIG 7.5@MMA |
||
|
Output current range (TIG) |
A |
10~120(110 v) 10~200 (220v) |
||
|
Output current range (MMA) |
A |
10~110(110v) 10~160(220v) |
||
|
Arc force range |
A |
0~40 |
||
|
Hot start current range |
A |
0~80 |
||
|
No-load voltage |
V |
60 |
||
|
Rated working voltage |
V |
18@TIG 26.4@MMA |
||
|
AC output frequency |
Hz |
20~250 |
||
|
AC balance |
% |
20~60 |
||
|
Background level |
A |
10~200 |
||
|
Pulse frequency |
Hz |
0.5~200 (DC) 0.5~25(AC) |
||
|
Pulse duty factor |
% |
5~95 |
||
|
Pre-flow time |
S |
0~5 |
||
|
Post-flow time |
S |
0~15 |
||
|
Rising time |
S |
0~15 |
||
|
Fall time |
S |
0~15 |
||
|

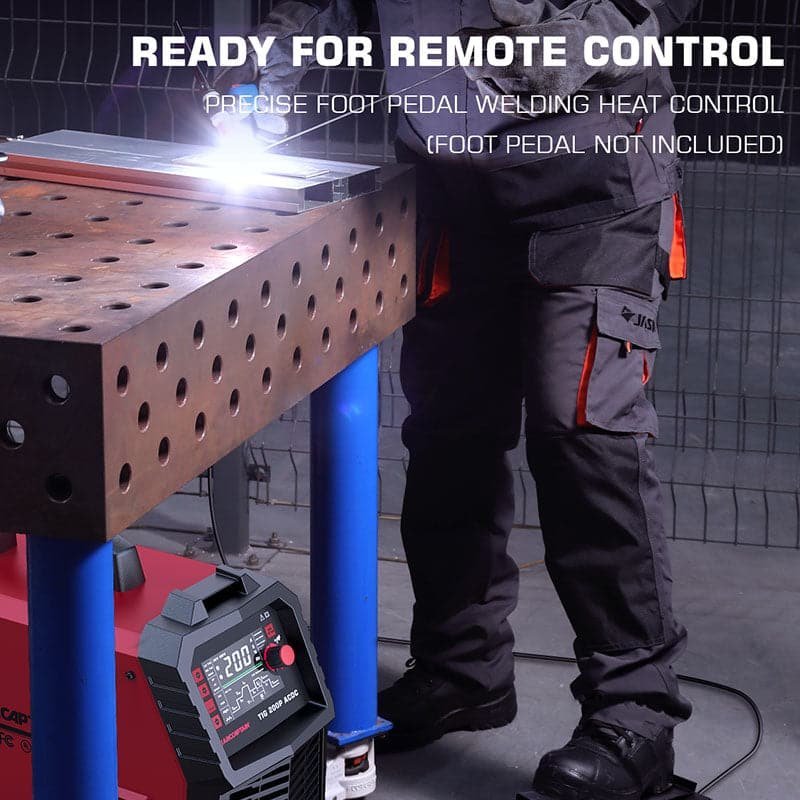

Remote control |
– |
Yes |
||
|
Arc start mode |
– |
HF arc starter |
||
|
Efficiency (%) |
% |
80 |
||
|
Duty cycle (%) |
% |
TIG: 200@25% – MMA: 160@25% |
||
|
Power factor |
– |
0.70 |
||
|
Type of cooling |
– |
Air cooled |
||
|
Working temperature range |
°C |
—10~+40 |
||
|
Storage temperature range |
°C |
—25~+55 |
||
|
Protection class |
– |
IP21S |
||
|
Insulation class |
– |
B |
||
